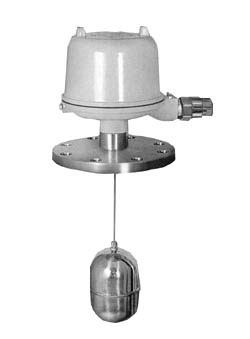

(Vertical Magnet Type Level Switch) SMC-95

Operating Principle

Ư¼ö °í¿Â¿ëÀ¸·Î Á¦À۵ǾúÀ¸¸ç,ÀÌ Àåºñ¿¡´Â ¹ÐºÀµÈreed switch°¡ Ç÷£Áö¿¡ ÀåÄ¡µÅÀÖ°í ¿µ±¸ÀÚ¼®ÀÌ Ç÷ÎÆ® ÃàÀÇ ¹Ý´ëÆí ³¡¿¡ ÀåÄ¡µÇ¾î À־ ºÎ·ÂÀ¸·Î ÀÎÇؼ­ Ç÷ÎÆ®°¡ ¿À¸£³»¸± ¶§ ¿µ±¸ÀÚ¼®ÀÌ Ç÷£Áö¿¡ ÀåÄ¡µÈ reed switch¿Í ¸Â´êÀ¸¸é¼­ Á¢Á¡ÀÌ »ý±â¹Ç·Î½á ·¹º§ °¨Áö¸¦ ÇØ ³»´Â ÀåºñÀÌ´Ù.

Features

  • Can be used for tanks under high pressure or high temperature
  • Designed to meet the requirements of ASME section IX
  • A wide variety of chambers can be used
  • Multiple switches can be assembled in a unit for economy
  • Increased reliabiillity due to the unique switching mechanism
  • No spring is used in the construction of the switching mechanism(Snap action switch)

Application

°í¿Â °í¾Ð¿ë ¹ßÀü¼Ò º¸ÀÏ·¯, À¯¾ÐÀåºñ, À±È°±â¸§, Æó¼ö, Á¤¼ö, ¿¬·á¿ÀÀÏ ÅÊÅ©, ´Ù¾çÇÑ È­ÇÐ ¹°ÁúÀÇ ÅÊÅ©, ³Ã°¢¼ö µîµî

Specifications

Description SMC-95 series
Application Liquid
Specific Gravity 0.85(Min.)
Operating Temperature +400¡É(Max.)
Ambient Temperature -20~+150¡É
Pressure 70kgf/§²(Max.)
Enclosure Weather proof Explosion proof(Ex d ¥±B T4)
Output SPDT, DPDT
Switch Type Snap Action Switch
Contact Life 1,000,000 Times
Contact Rating 10A, 250V AC
Cable Gland PF¨ö", PF¨ú"
Material Housing ADC-12
Flange SUS 304 & SUS 316
Spacer SUS 316
Rod SUS 316
Float SUS 316
