ÇöÀå¿¡¼­ Àý´ëÀûÀ¸·Î ÇÊ¿äÇÑ ¾Ð·Â°ú ¿Âµµ, ½Àµµ Æ®·£½º¹ÌÅÍ´Â °íÁ¤µµ ÇÁ·Î¼¼¼­¸¦ »ç¿ëÇÏ¿© Ãֽűâ´ÉÀ» ³»ÀåÇÏ°í ÀÖÀ¸¸ç »çÈÄÀ¯Áöº¸¼ö°¡ ½±µµ·ÏÇÏ¿© °æÀï·ÂÀ» Ç×»ó½ÃÅ°°í ÀÖ½À´Ï´Ù.

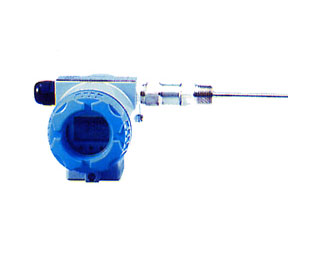

½º¸¶Æ®Çü ¿Âµµ Àü¼Û±â(Smart Temperature Transmitter): KT-502

KT-502

Multi range ÀÔ·ÂÀÇ ¿ÂµµÆ®·£½º¹ÌÅÍ smartÇüÀ¸·Î Hart protocolÀ» ÀÌ¿ëÇÑ ¿ø°Ý°¨½Ã°¡ °¡´ÉÇÕ´Ï´Ù.

Á¦Ç°»ç¾ç

ÀÔ·Â B,R,S,K,J,E,T,N,RTD,mV,V,mA
ÃøÁ¤ÁÖ±â 1 sec
ÀÔ·ÂÀúÇ× 1§Û
½ÅÈ£ ¿ø ÀúÇ× RTD TYPE 10§Ù/LINE, ±âŸ TYPE 300§Ù
CMRR 140 dBÀÌ»ó
NMRR 40 dBÀÌ»ó
Filter None, FIR, 4 AVG, 8 AVG, 16 AVG
Ãâ·Â 2wire DC 4-20§Ì With Hart digital communication
* Low limit : 3.8§Ì
* Upper limit : 20.8§Ì
* Ripple : 0.5 % of max output current
Ư¼º TC½Ç¿Âº¸»ó, RTD¼±·Îº¸»ó, TC RTD Lineralize
Isolation 100 §Û more with 500 VDC(Input to output)
Åë½Å Hart protocol (Load 230§Ù ~ max load)
Dielection strength 1000 VAC 1minute (Input to output)
Load limit R = (Vsp - 15) / 0.021§Ù
Step response time Min 1 sec
Degree of protection IP61
Indicator 4Digit LCD Indicator
Àü¿ø DC15 ~ 35 V
»ç¿ëÁ¶°Ç * µ¿ÀÛ ¿Â, ½Àµµ : -10 ~ 60 ¡É, 10 ~ 90 %
* º¸Á¸ ¿Â, ½Àµµ : -20 ~ 70 ¡É, 5 ~ 95 %
CASE ÀçÁú Aluminum ´ÙÀÌij½ºÆÃ(Ex D II CT6)
¹«°Ô 2.3§¸
ÀÚµ¿ ¸Þ´ºº¹±Í½Ã°£ 15 sec
Turn on time min 10 sec
Accuracy 0.1% Fs (at 25¡¾2¡ÆC, mV Input)
option Head held terminal HHT500(option)
PC Hart card PCH500(option)
Test program PCS 500(option)

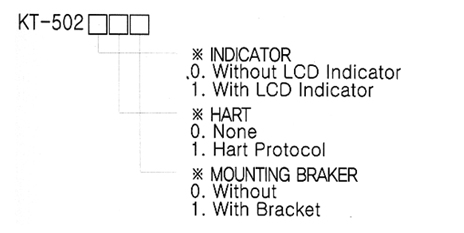

Ordering Code

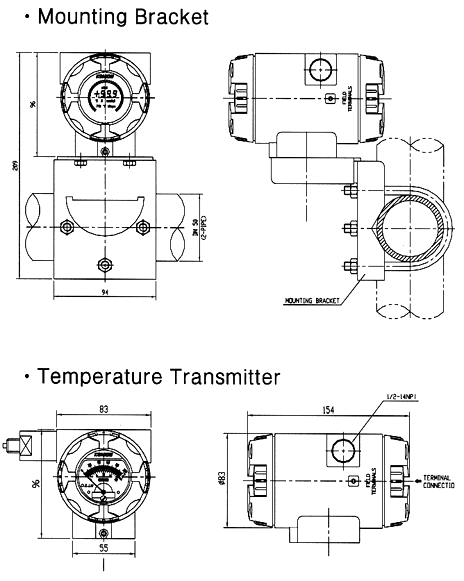

Dimention

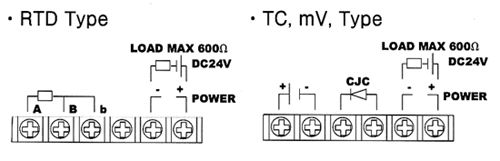

´ÜÀÚ°á¼±µµ
